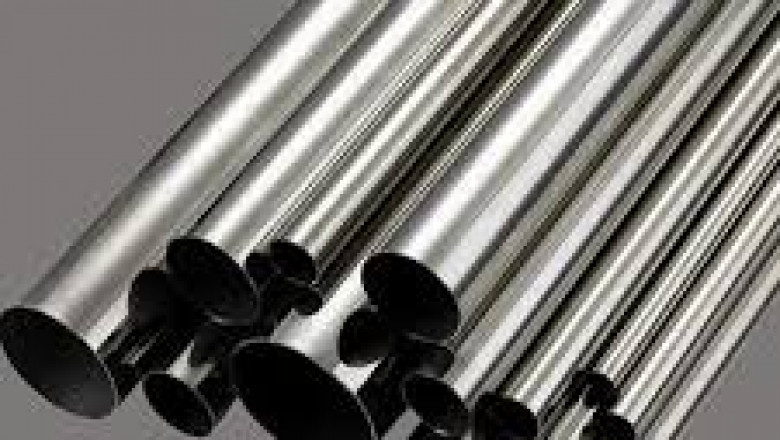

DIN 1.4501 tubes are a type of super duplex stainless steel known for their strong resistance to corrosion and excellent mechanical strength. In simple terms, these tubes blend the best qualities of two types of stainless steel—ferritic and austenitic—into one. This special make-up allows them to stand up to harsh environments, such as seawater, acidic chemicals, and extreme temperatures. If you work in oil and gas, chemical processing, marine, or power generation, understanding DIN 1.4501 Tubes can help you choose materials that last longer and require less maintenance.
What is DIN 1.4501 Tubes?
DIN 1.4501 is defined under European standard EN 1.4501, also known by its UNS name S32760 or trade name Alloy 100 Super Duplex. The “DIN” prefix refers to German industrial norms that specify precise alloy composition and mechanical performance. In these tubes, you’ll find roughly 25% chromium, 7% nickel, 3.6% molybdenum, along with small amounts of copper, tungsten, and nitrogen. This exact formula creates a balanced mixture of roughly 50% ferrite and 50% austenite in the metal’s microstructure, which gives it outstanding toughness and corrosion resistance.
Composition and Characteristics of DIN 1.4501 Tubes
The main factors that set DIN 1.4501 tubes apart are their chemical makeup and resulting microstructure. High chromium content (around 25%) forms a strong protective oxide layer on the surface, preventing rust and pitting. Molybdenum (about 3.6%) further guards against localized corrosion, such as crevice or pitting attacks. Nickel (7%) stabilizes the austenitic phase, improving toughness at low temperatures. Small additions of copper and tungsten boost resistance to reducing acids. Nitrogen helps strengthen the steel and improve pitting resistance. Lastly, keeping carbon very low (≤ 0.03%) stops any harmful carbide precipitation during welding or heat exposure.
Corrosion Resistance and Mechanical Strength of DIN 1.4501 Tubes
When it comes to fighting corrosion, DIN 1.4501 tubes truly shine. Their high pitting resistance equivalent number (PREN) often exceeds 40, which means they outperform common grades like 316L or duplex 1.4462 in chloride-rich settings. You can use these tubes in seawater, brine, or acid-lined pipes without worrying about quick metal loss. On the mechanical side, super duplex offers yield strengths near 550 MPa (80 ksi) and tensile strengths around 800 MPa (116 ksi). These values are much higher than those of standard austenitic stainless steels, allowing designers to specify thinner wall sections while still meeting pressure requirements. Thinner walls save weight and material costs without sacrificing safety.
Common Applications of DIN 1.4501 Tubes
Because of their balanced blend of corrosion resistance and toughness, DIN 1.4501 tubes appear in many demanding fields:
Oil & Gas: Downhole tubing, risers, and subsea production lines often see high levels of chlorides and hydrogen sulfide. Super duplex tubes help prevent stress corrosion cracking and unexpected failures.
Chemical Processing: In plants handling strong acids—such as hydrochloric or sulfuric acids—these tubes serve in reactors, condensers, and transfer lines. Their resistance to localized attacks lowers maintenance needs.
Desalination & Marine: Heat exchangers, seawater piping, and reverse osmosis units use DIN 1.4501 to resist biofouling and chloride-induced corrosion in saltwater environments.
Power Generation: In flue gas desulfurization scrubbers, boiler feedwater piping, and condenser tubing, super duplex steel stands up to acid gases and high-temperature uptake, extending equipment life.
Leoscor Alloy Pipes: Your Trusted DIN 1.4501 Tubes Supplier
When it comes to finding top-quality DIN 1.4501 tubes, Leoscor Alloy Pipes stands out as a leading supplier. Leoscor keeps a large inventory of super duplex stainless steel tubing—including seamless, ERW, and welded options—in sizes from ½″ NPS to 30″ NPS and wall schedules SCH 10 through SCH 80. Every batch undergoes strict testing based on ASTM A790/ASME SA790 and EN 10216-5 standards, and each tube is accompanied by a 3.1 or 3.2 test certificate. Besides offering competitive pricing and quick delivery, Leoscor provides value-added services such as custom cut-to-length orders, end finishing (beveling, threading), and third-party inspection from agencies like TÜV and Lloyd’s. Engineers and procurement teams trust Leoscor Alloy Pipes for reliable, traceable DIN 1.4501 tubes that fit both domestic and international project needs.
Conclusion
DIN 1.4501 tubes deliver an excellent combination of corrosion resistance, mechanical strength, and cost efficiency by allowing thinner walls in pressure applications. Whether you work in oil and gas, chemical processing, marine, or power generation, these tubes can help minimize unplanned downtime, cut maintenance costs, and extend equipment lifespans. Remember to verify certifications, check precise dimensions, and consider surface finishes when choosing your tubes. For dependable supply, look to Leoscor Alloy Pipes—your go-to DIN 1.4501 Tubes Suppliers offering certified materials, strong technical support, and fast, reliable delivery.
