Common Auger Boring Machine Problems and How to Solve Them

Common Auger Boring Machine Problems and How to Solve Them

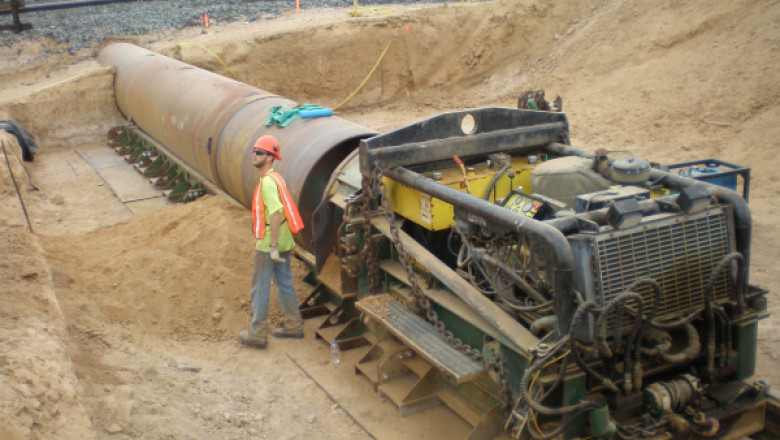

The auger boring machine is a vital tool in trenchless construction, widely used for installing pipelines and conduits under roads, railways, and other surface obstacles without open trenching. These machines offer precision, reduced surface disruption, and improved efficiency. However, like any heavy-duty equipment, auger boring machines can encounter operational challenges that may lead to project delays, equipment damage, or safety risks.

Understanding the most **common auger boring machine problems—and how to solve them—**is essential for maximizing uptime, extending equipment life, and ensuring successful bore operations. In this guide, we’ll explore frequent issues, their causes, and practical troubleshooting solutions.

1. Poor Line and Grade Control

The Problem:

Maintaining a precise line and grade is crucial in auger boring operations. However, deviations can occur due to soil inconsistencies, improper setup, or machine drift.

Common Causes:

• Inaccurate alignment at launch.

• Shifting of the casing during boring.

• Inadequate steering control on non-guided machines.

• Uneven soil resistance.

Solutions:

• Use a well-designed jacking frame to maintain proper alignment.

• Start with a carefully surveyed and reinforced launch pit.

• If needed, employ a guided auger boring machine for improved accuracy.

• Monitor soil conditions continuously and adjust bore parameters accordingly.

2. Stuck or Jammed Auger

The Problem:

The auger may become stuck or jammed inside the casing, halting progress and potentially damaging internal components.

Common Causes:

• Obstruction by rocks or debris.

• Overfilled casing that restricts auger movement.

• Misalignment causing increased resistance.

Solutions:

• Avoid overloading the auger by controlling feed rates and monitoring spoil buildup.

• Use cutting heads appropriate for the ground conditions.

• Clean out the casing frequently to prevent accumulation.

• In challenging soils, consider pre-drilling or soil conditioning.

3. Excessive Vibration or Noise

The Problem:

Unusual vibration or noise may indicate a mechanical fault or imbalance within the auger boring machine, leading to premature wear or failure.

Common Causes:

• Worn or misaligned auger flights.

• Loose or damaged bearings.

• Improper lubrication.

Solutions:

• Inspect auger flights for wear and replace if needed.

• Check all bearings and supports for damage or looseness.

• Maintain a strict lubrication schedule.

• Ensure all components are properly torqued and secured.

4. Spoil Removal Issues

The Problem:

Efficient removal of spoil is critical to boring success. Poor spoil removal can lead to blockage, delays, and additional strain on the auger system.

Common Causes:

• Wet or sticky soils that clump.

• Incorrect auger pitch or diameter for the soil type.

• Inadequate rotation speed.

Solutions:

• Adjust the auger pitch to better match the spoil characteristics.

• Use soil conditioning agents for problematic soils (e.g., bentonite in sticky clay).

• Increase the auger speed or rotation direction as appropriate.

• Schedule regular cleaning intervals to prevent spoil buildup.

5. Hydraulic System Failures

The Problem:

Most modern auger boring machines use hydraulic systems to power the main drive, thrust, and steering functions. Malfunctions here can lead to total operational shutdown.

Common Causes:

• Fluid contamination or leakage.

• Faulty hoses or connectors.

• Pump or valve failures.

Solutions:

• Perform regular hydraulic fluid checks and change filters as scheduled.

• Inspect hoses, seals, and fittings before each job.

• Maintain fluid at proper temperature and pressure levels.

• Train operators to recognize early warning signs such as decreased responsiveness or unusual noises.

6. Cutting Head Wear or Failure

The Problem:

The cutting head is on the front line of the operation and often the first to wear down, especially in abrasive soils.

Common Causes:

• Extended use in harsh soils without adequate inspection.

• Poor material quality of cutting edges.

• Incorrect head design for the ground conditions.

Solutions:

• Match the cutting head to the soil type (rock head for rocky conditions, clay head for cohesive soils).

• Inspect and replace cutting edges regularly.

• Consider using hardened or carbide-tipped cutters in abrasive environments.

7. Overheating of Drive Components

The Problem:

High-temperature buildup in the drive system can damage internal gears, motors, and bearings, reducing machine life.

Common Causes:

• Prolonged operation under high load.

• Poor ventilation or cooling.

• Low or dirty lubricant.

Solutions:

• Use the machine within recommended duty cycles.

• Ensure ventilation paths are clear and fans are operational.

• Regularly inspect and top off gear oil and lubricants.

8. Casing Collapse or Buckling

The Problem:

Buckled or collapsed casing can halt the boring process and may require costly retrieval or replacement.

Common Causes:

• Insufficient casing wall thickness for the bore depth.

• Excessive external soil pressure.

• Improper jacking pressure or alignment.

Solutions:

• Use properly rated casings for each project.

• Monitor jacking forces and ensure even distribution.

• Avoid sudden changes in soil type without adjusting boring strategy.

9. Machine Drift or Movement in Pit

The Problem:

Even slight movement of the auger boring machine during operation can throw off the line and damage components.

Common Causes:

• Unsecured setup.

• Inadequate foundation or base preparation.

Solutions:

• Anchor the machine securely in the pit using steel reinforcements or deadman anchors.

• Ensure the pit floor is level, compacted, and capable of supporting machine weight and thrust.

10. Operator Error or Inexperience

The Problem:

Even with the best equipment, a lack of training can lead to costly errors, accidents, or machine damage.

Common Causes:

• Insufficient training or supervision.

• Misinterpretation of control systems or soil behavior.

• Skipping daily inspections or maintenance.

Solutions:

• Invest in formal training for all operators.

• Keep detailed operational manuals on hand.

• Use checklists and daily pre-start inspections.

• Encourage a culture of proactive maintenance and communication.

Final Thoughts

The auger boring machine is a robust and reliable tool when properly used and maintained. By understanding these common problems and how to address them, contractors can avoid costly delays, enhance safety, and extend the service life of their equipment.
